★CNFSimulator.VMT.A320 Specifications

Desktop-based virtual maintenance training system for civil aviation maintenance personnel. Developed on the official Airbus A320 aircraft dataset. Compliant with CAAC CCAR-147 / AC-147-04R1 Type II practical training requirements and MH/T 3028-2013 Grade B simulator standard.

Main Features:

  • Developed on the official Airbus A320 aircraft dataset (Package 5); all component models strictly follow A320 AMM procedures

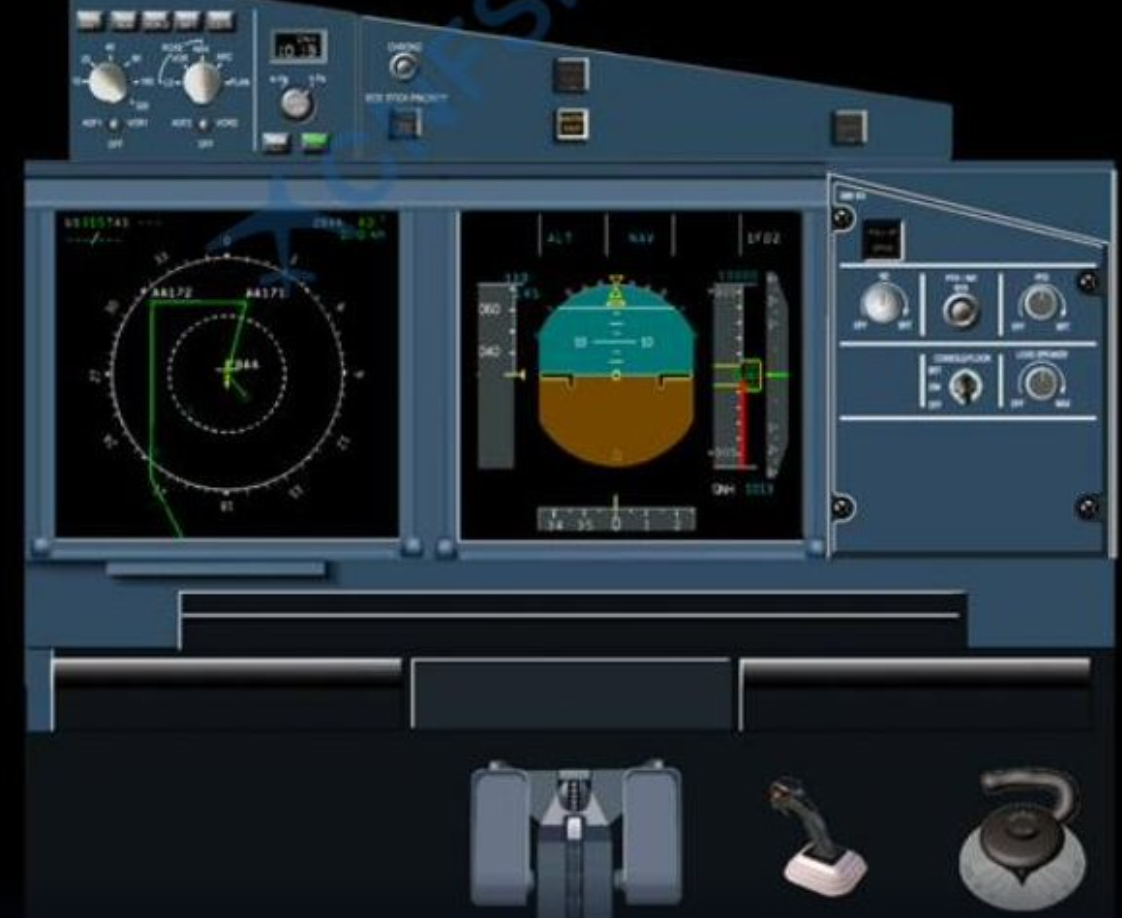

  • Fully interactive 3D virtual cockpit — all panels (including MCDU, overhead panel, circuit breaker panels) mouse-operable

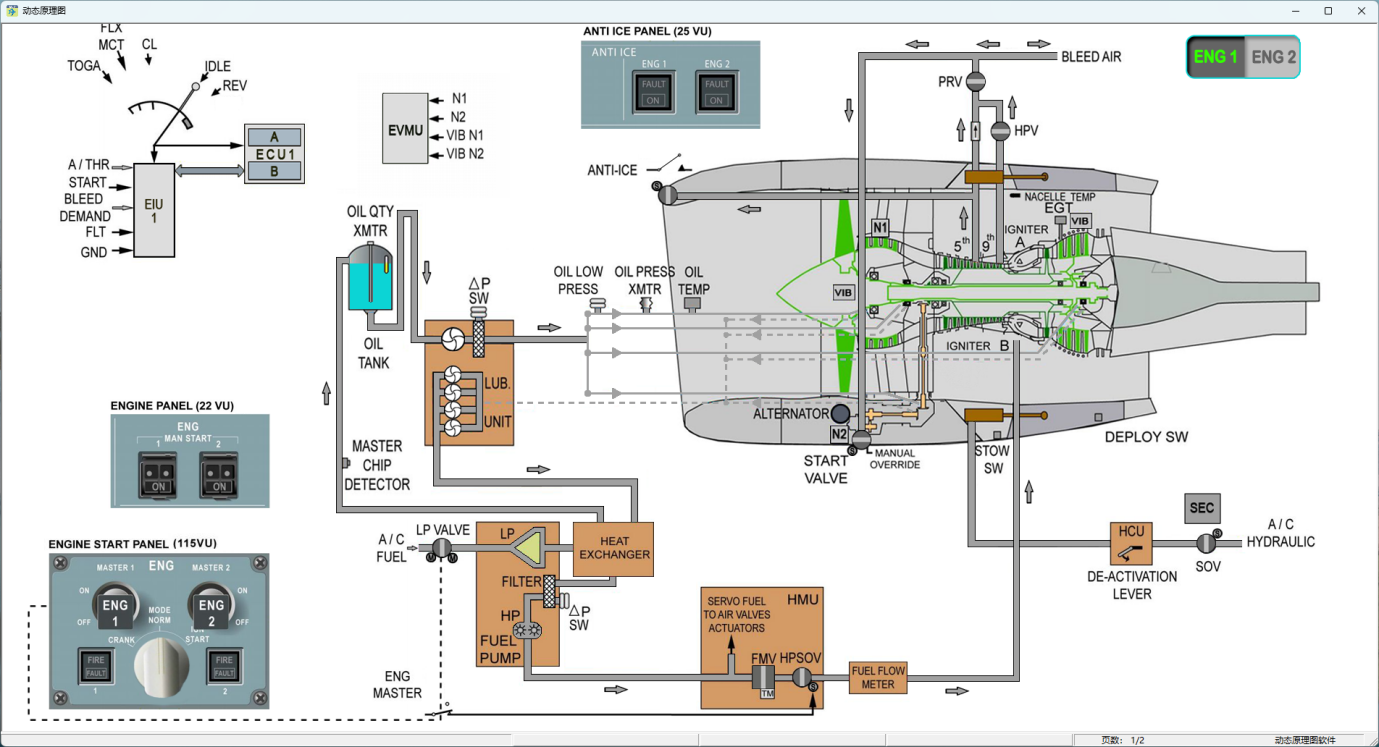

  • 3-layer dynamic system schematics: logic / structure / wiring — live-synced with cockpit state in real time

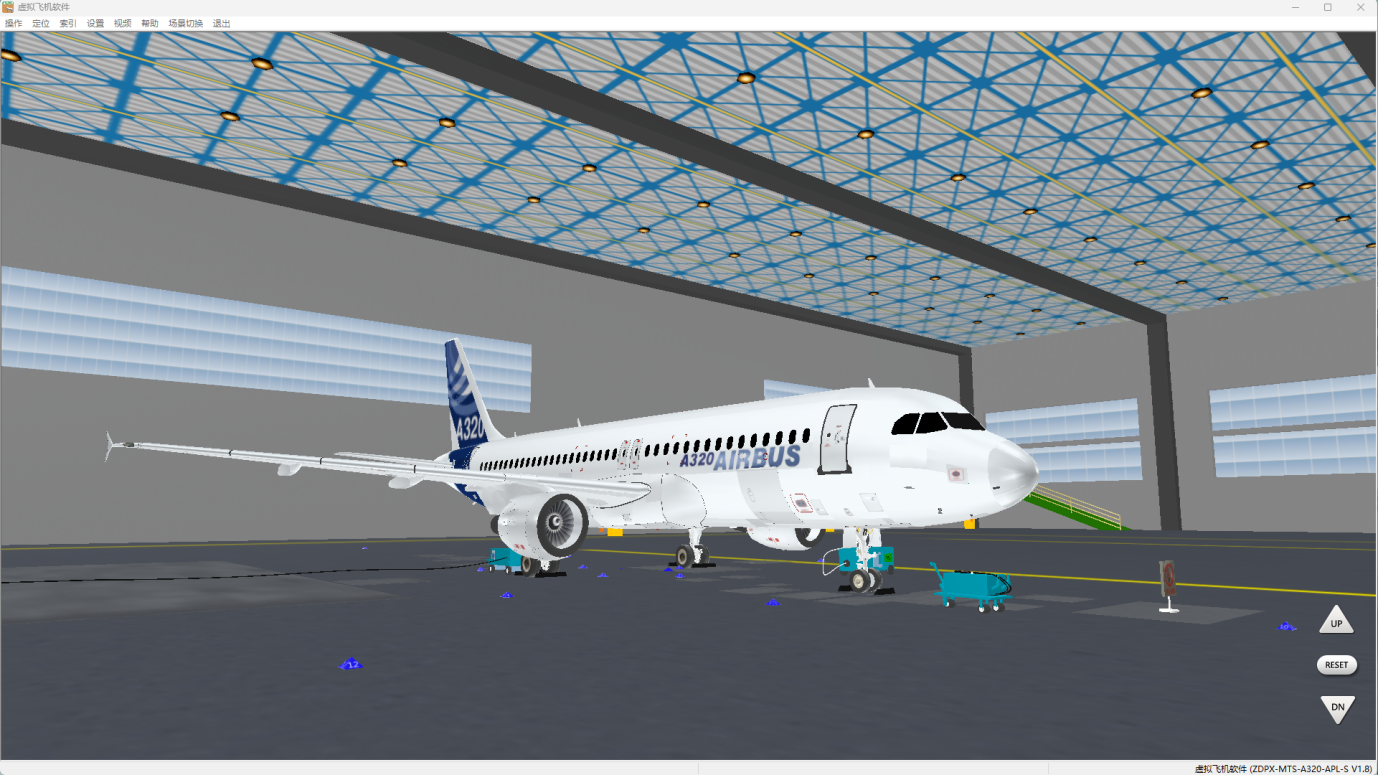

  • 3D virtual aircraft with component-level disassembly and maintenance task execution
  • 20 ATA system chapters covered: ATA 21–36, ATA 49, ATA 52, ATA 53, ATA 70 (air conditioning, electrical, hydraulics, fuel, flight controls, landing gear, fire protection, navigation, APU, powerplant, and more)
  • 265 training tasks (operations, testing, disassembly/installation, fault isolation) — each with bilingual AMM-referenced task cards
  • Fault injection system: 4 fault types (alarm, warning, advisory, no ECAM message); TSM and BITE-guided troubleshooting
  • Embedded maintenance manuals: AMM, IPC, TSM, FIM, WDM, SRM, ESPM, BITE
  • Two engine configurations: CFM56-5B and IAE V2500-A5
  • Full flight simulation: engine start, taxi, takeoff, cruise, approach, landing

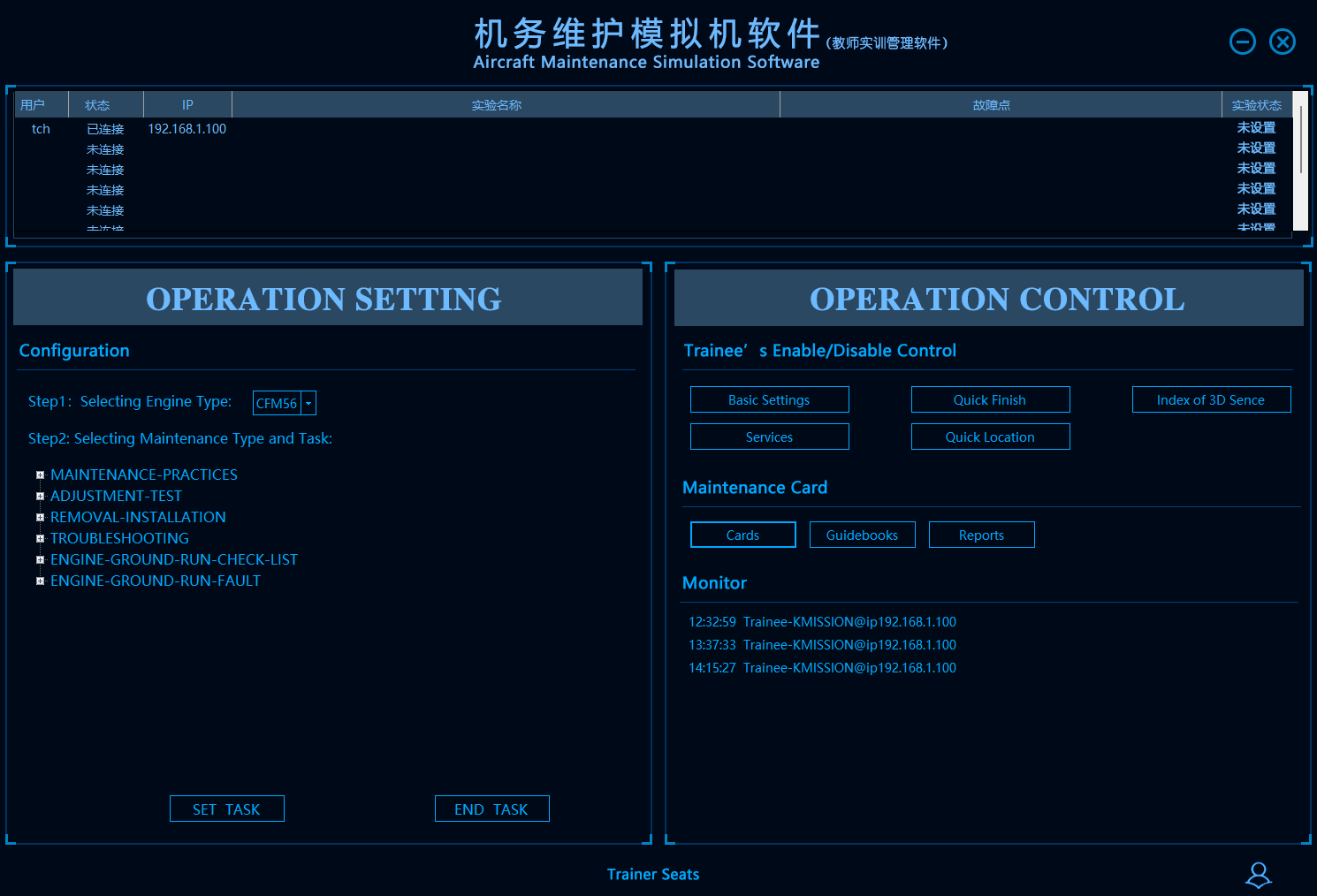

  • Networked classroom: 1 instructor station + up to 12 student stations
  • Built-in LMS: task assignment, exam delivery, automatic grading, training record export (Excel)
  • 1,000+ concurrent web-based sessions supported (LAN or external network)
  • Continuous runtime 24+ hours; standard office environment; no special infrastructure required
  • Regulatory compliance: CAAC CCAR-147 / AC-147-04R1, MH/T 3028-2013 Grade B



★Product Applications

Aircraft Systems Maintenance Training

  • Covers 20 ATA chapters including air conditioning, electrical, hydraulics, fuel, flight controls, landing gear, fire protection, navigation, APU, and powerplant
  • Supports operations, functional testing, disassembly/installation, and fault isolation tasks
  • 265 training task cards based on actual A320 AMM procedures; includes post-flight check cards and scheduled maintenance cards

Fault Diagnosis and Troubleshooting Training

  • Instructor injects faults remotely across any ATA chapter; students diagnose from cockpit ECAM indications
  • Full CFDS simulation: current flight report, ECAM report, last flight report, avionics status — aligned with actual A320 TSM procedures
  • Supports FIM/TSM-guided troubleshooting; fault effects identical to the real aircraft in both ground and airborne states

 Classroom Instruction and Examination

  • Centralized instructor control over all student stations via networked classroom
  • Supports written and practical examination delivery with automatic grading and configurable question banks
  • Training records (learning hours, task completion, exam scores) exportable for CCAR-147 compliance documentation





★Function Upgrade Options

Engine Trial Run Training Module

  • Full A320 engine trial run task library: cold turn, start, idle, climb, cruise, shutdown
  • Covers abnormal scenarios: hung start, hot start, fire during start, overspeed
  • Supports CFM56-5B and IAE V2500-A5 configurations

Cockpit Hardware Integration

  • VMT software can be integrated with physical A320 cockpit hardware panels
  • Compatible with CNFSimulator A320 cockpit hardware product line
  • Provides a combined software and hardware training environment for advanced type-rating courses
