★ CNFSimulator.VMT.B737 Specifications

Desktop-based virtual maintenance training system for civil aviation maintenance personnel. Developed on the official Boeing B737-800 aircraft dataset (Boeing-authorized). Compliant with CAAC CCAR-147 / AC-147-04R1 Type II practical training requirements and MH/T 3028-2013 Grade B simulator standard.

Main Features:

• Developed on the official Boeing B737-800 dataset (Boeing-authorized); references AMM, IPC, WDM, SSM, FCOM, FIM technical manuals
• Complete 3D cockpit covering all B737-800 panels: P1 Captain Instrument Panel, P2 Center Panel, P3 F/O Panel, P5 Overhead Panel, P6/P18 Circuit Breaker Panels, P7–P9 Electronics Panels — all mouse-operable

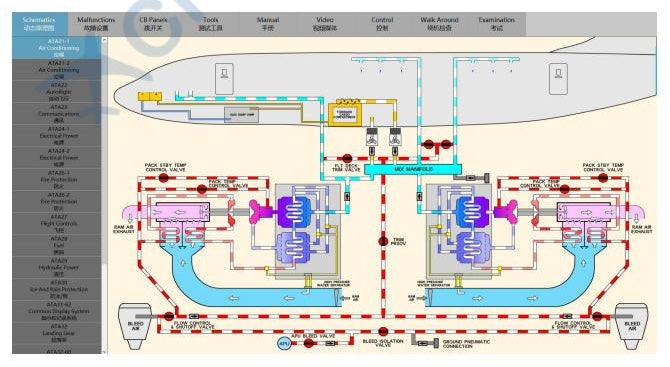

• 3-layer dynamic system schematics: logic / structure / wiring — live-synced with cockpit state; covers ATA 21, 22, 23, 24, 26, 27, 28, 29, 30, 31, 32, 33, 34, 36, 49, 70

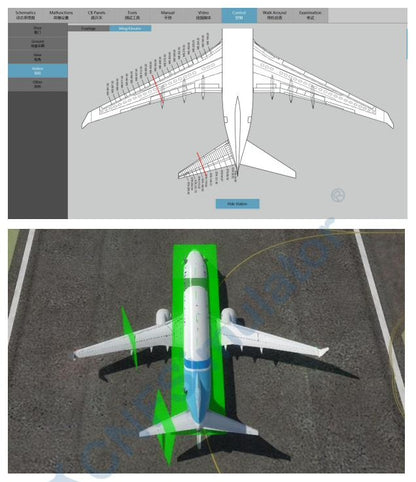

• 3D virtual aircraft with component-level disassembly and maintenance task execution; all access panels, hatches, and avionics bay doors operable

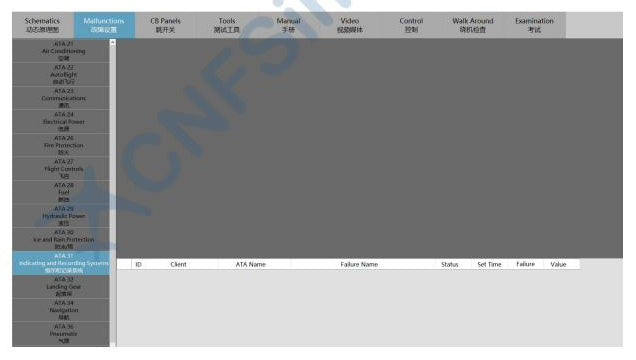

• Fault injection system covering all modelled ATA chapters; fault effects identical to real aircraft in ground and flight states
• Embedded maintenance manuals: AMM, IPC, SRM, MEL, FIM, BITE — supports user-added manuals in PDF format
• Engine configuration: CFM 56-7B
• Full flight simulation: engine start, taxi, takeoff, cruise, approach, landing; abnormal engine scenarios (fire, hung start, overtemperature)
• Virtual parts store and tool library: simulates material requisition, tool borrowing/return workflows
• Networked classroom: 1 instructor station + up to 12 student stations
• Built-in LMS: task assignment, exam delivery, automatic grading, training record export (Excel)
• 1,000+ concurrent web-based sessions supported (LAN or external network)
• Continuous runtime 24+ hours; standard office environment; no special infrastructure required
• Regulatory compliance: CAAC CCAR-147 / AC-147-04R1, MH/T 3028-2013 Grade B



★ Product Applications

Aircraft Systems Maintenance Training

• Covers key ATA chapters including air conditioning, auto flight, communications, electrical, fire protection, flight controls, fuel, hydraulics, ice and rain protection, indicating/recording, landing gear, lights, navigation, pneumatics, APU, and powerplant
• Supports operations, functional testing, disassembly/installation, and fault isolation tasks
• Task cards referenced to Boeing AMM and FIM; includes electronic post-flight checklist and scheduled maintenance cards with instructor-configurable faults

Fault Diagnosis and Troubleshooting Training

• Instructor injects faults remotely; students diagnose using MCDU, circuit breaker panels, and FIM procedures
• Supports in-cockpit BITE-based system testing and 3D avionics bay access for component-level troubleshooting

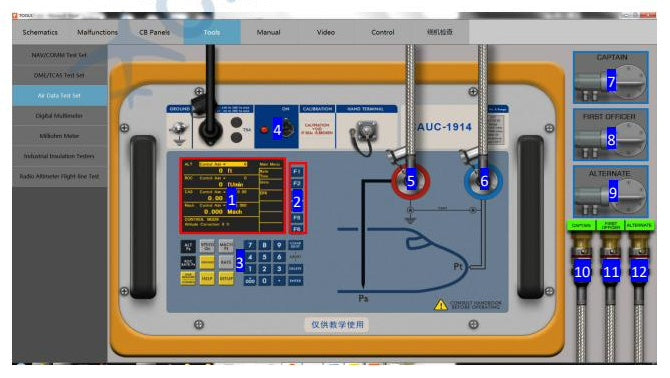

• Specialized test equipment simulation (e.g. ADC airtightness tester) for hands-on diagnostic training

Classroom Instruction and Examination

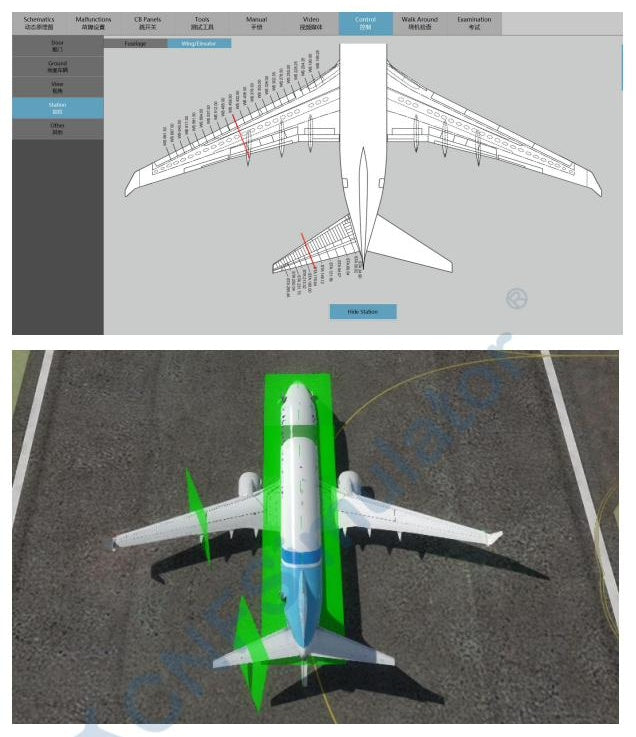

• Centralized instructor control: remote monitoring, fault injection, state reset across all student stations
• Supports written and practical examination delivery with configurable question banks and automatic grading
• Training records (learning hours, task completion, exam scores) exportable for CCAR-147 compliance documentation



★ Function Upgrade Options

Engine Trial Run Training Module

• Full B737-800 engine trial run task library: cold turn, start, idle, climb, cruise, shutdown
• Covers abnormal scenarios: fire during start, hung start, overtemperature, overspeed
• CFM 56-7B engine configuration; compliant with CCAR-147 powerplant training requirements

Cockpit Hardware Integration

• VMT software can be integrated with physical B737-800 cockpit hardware panels
• Provides a combined software and hardware training environment for advanced type-rating courses
