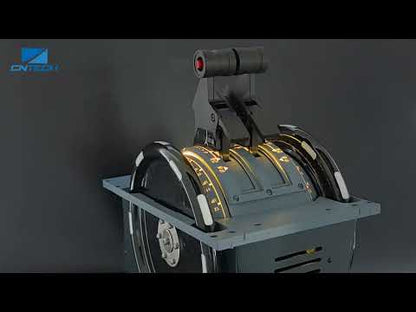

CNFSimulator.A320 TQ Product Specification (PDF)
Please note: Some product photos show earlier models (prior to February 2026) with non-glossy handles. All units ordered after February 2026 feature the updated glossy handles.
Product Applications
Flight Enthusiasts
Aimed at home flight-simulation enthusiasts, it faithfully reproduces thrust lever travel, detents and force feel, and works plug-and-play with mainstream software such as MSFS and X-Plane, bringing near-real flight deck handling home.
Research Platforms
For aviation colleges, research institutes and laboratories, it serves research and teaching demonstrations in control ergonomics, cockpit human-machine interaction and flight-simulation control.
Simulator Integration
Paired with CNFSimulator.A320 series simulators and third-party cockpit systems, it works as the core control unit of a complete A320 flight deck, with support for joint debugging and later expansion.
Key Features

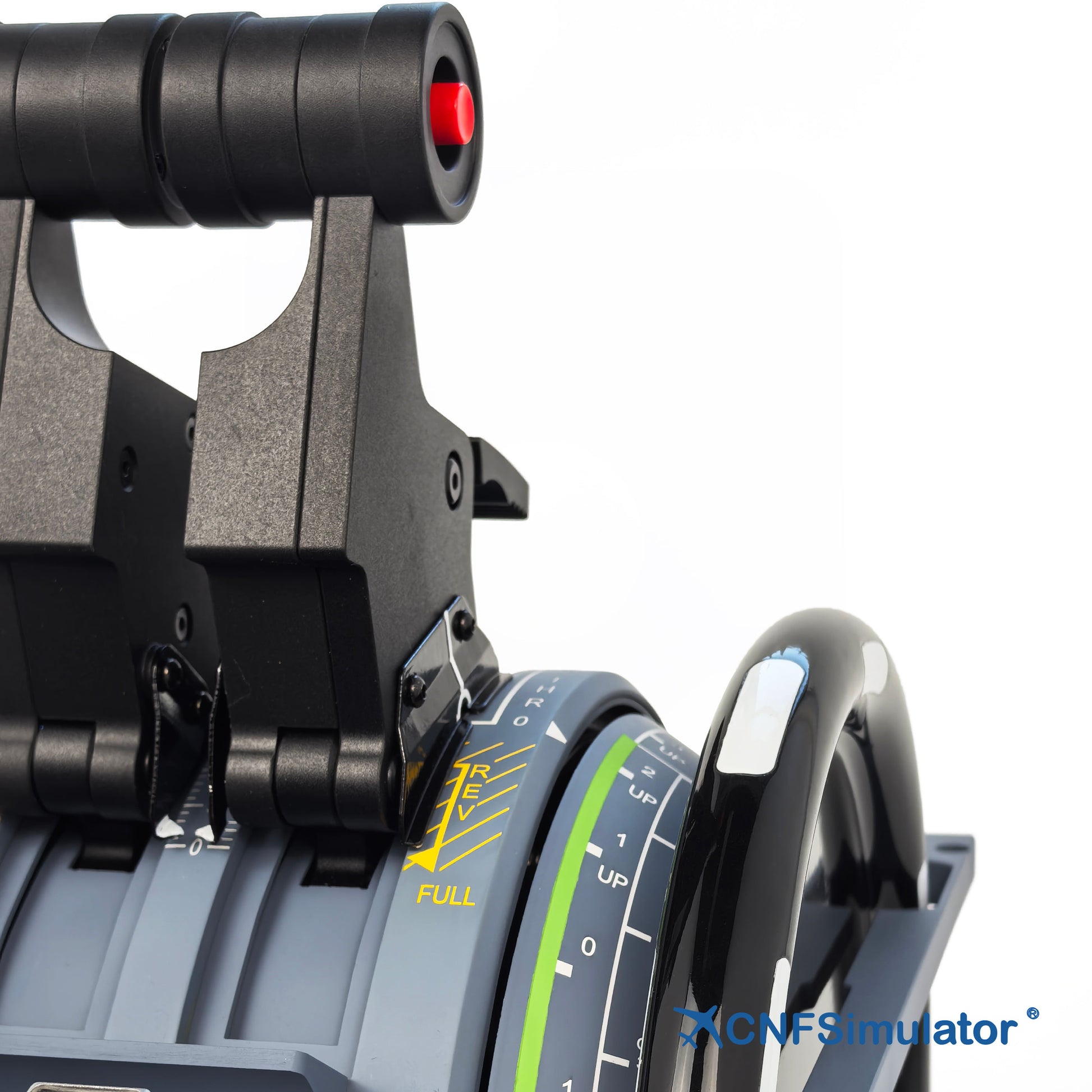

- 01 Precise Thrust Lever Travel — All-metal levers with smooth damping reproduce the full REV, IDLE, CL, MCT and TOGA detents; the detents are clearly felt and the mechanical stops sound crisp, for a feel close to the real aircraft.
- 02 High-Precision Hall-Effect Sensors — No mechanical wear and a long service life, with high resolution and linearity; automatic calibration and signal testing are available with the iFSim.Ready software.
- 03 Motorized Trim Wheels — Driven by direct-drive servo motors; the non-metallic trim wheels are internally reinforced for smooth, wear-resistant transmission. The gear ratio follows the real aircraft, and the wheels can rotate back automatically.
- 04 Complete Scales and Functional Markings — Panel scales, detents and reverse-thrust operation follow the real-aircraft layout; the aviation-grade light guide panel gives uniform, adjustable illumination and reproduces every detail faithfully.
- 05 Robust and Durable Construction — Metal levers and frame are built to last, and the custom metal gear transmission stays stable and reliable under frequent use.
- 06 Broad Compatibility, Plug and Play — CAN bus communication with a plug-and-play USB-CAN adapter; supports MSFS, P3D, X-Plane and other mainstream platforms, and is compatible with iFSim, ProSim, ToLiss, Fenix and Jeehell A320 add-ons.
- 07 Adjustable Damping for a Personal Feel — A damping adjustment mechanism inside the thrust levers lets you set lever force to your own preference, meeting the needs of both home entertainment and professional training.
- 08 True-to-Aircraft Reverse Thrust and Safety Indication — The reverse levers use a metal locking mechanism: the reverse range can be entered only after lifting to unlock, faithfully reproducing the real aircraft’s control logic and safety detail.
Product Components
| Component | Description |
|---|---|

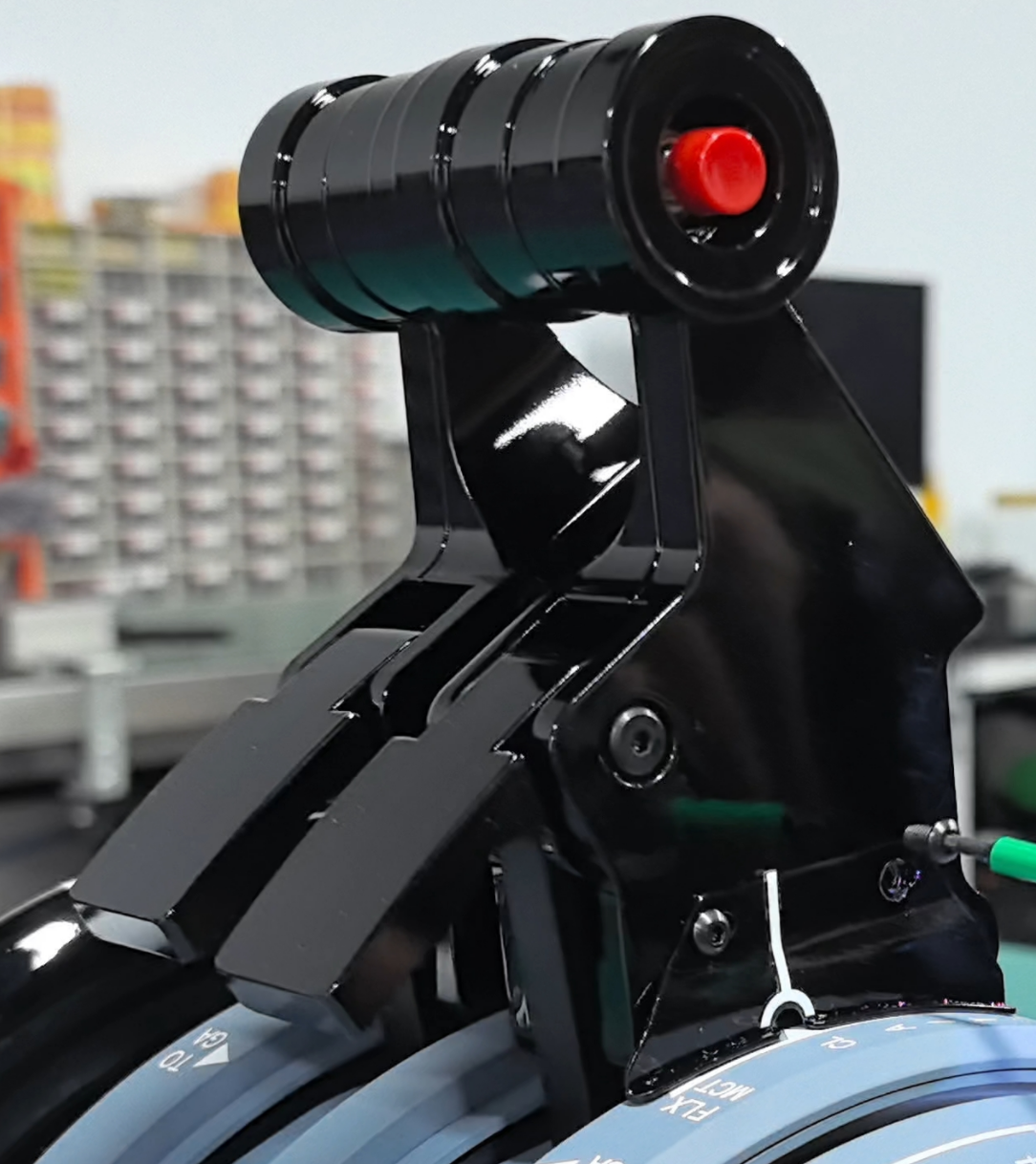

| Thrust Levers | Made of metal with a glossy black finish, realistic in feel and built to last; the levers can enter the reverse range only after being lifted to unlock. |
| Trim Wheels | Non-metallic material with internal reinforcement, glossy black finish, smooth transmission, wear-resistant and quiet in operation, with engraved white index marks. |
| Light Guide Panel | Aviation-grade light guide panel with warm-white backlight, uniform illumination, adjustable brightness and a soft glow. |
| Main Frame | Metal frame with a rigid structure that withstands vibration in transport. |
| ENG MODE Selector | Three-position rotary selector. |
| ENG MASTER 1 / 2 | Two-position lift-to-operate switches with protection against inadvertent operation. |
| FIRE / FAULT Indicators | FIRE in red backlight, FAULT in amber backlight. |
| A/THR | Red self-resetting push-button. |
Compatibility
Product Specifications
| Item | Specification |
|---|---|
| Product Dimensions | 368.5 × 217 × 381 mm (W × H × D) |
| Product Weight | 14 kg |
| Package Dimensions | 450 × 320 × 450 mm (L × W × H) |
| Gross Weight | 15 kg |
| Data Interface | RJ45 |
| Network Cable | RJ45 network cable, ≤ 26 AWG (the smaller the number, the thicker the conductor), shielded |
| Power Supply & Consumption | AC 100–240 V, 47–63 Hz; ≤ 75 W |
| Operating Environment | Temperature 0–35 °C, humidity 40%–85% RH |

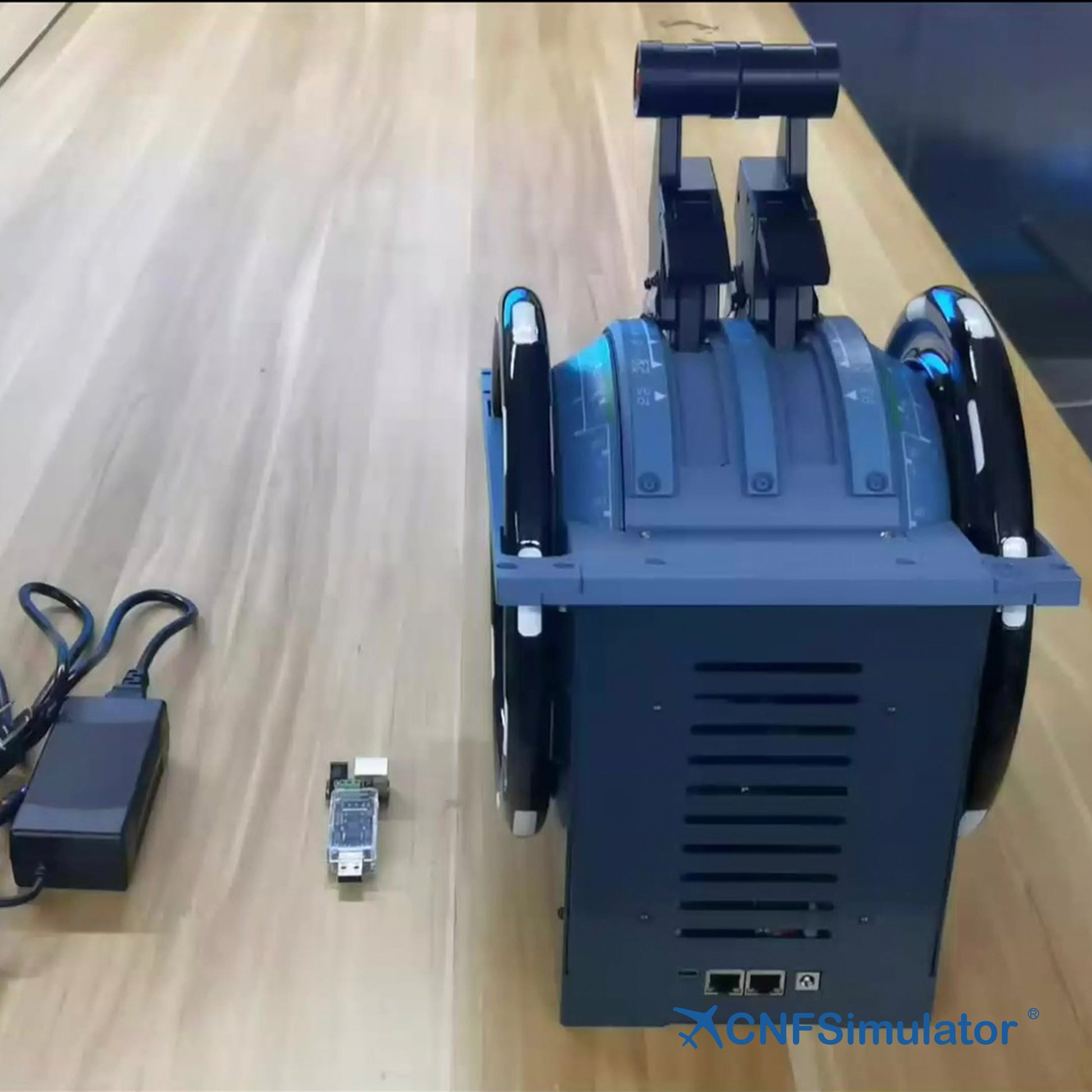

Packing List
| No. | Accessory | Description | Qty. |
|---|---|---|---|
| 1 | Throttle Quadrant Unit | Complete A320 throttle quadrant assembly | 1 |
| 2 | USB-CAN Adapter | USB-to-CAN communication | 1 |
| 3 | Power Adapter | 24 VDC output | 1 |
| 4 | Cat. 8 Shielded Network Cable | CAN bus communication cable | 1 |
| 5 | Data Cable | USB | 1 |
Product Dimensions
Product dimensions and mounting-hole layout (368.5 × 217 × 381 mm)
Logistics Information
- The product will be shipped within 7 days.
- Tax-Inclusive Shipping (DDP): Available for the US, most EU countries, and select regions. Zero import duties or hidden customs fees at delivery (Estimated delivery: ~45 days). Look for "DDP" or "Tax-Inclusive" at checkout to confirm coverage.
- Standard Shipping (DAP): If "DAP" appears at checkout, local customs fees and import duties may apply upon arrival.
- Express Shipping: Faster shipping routes are available upon request by contacting support.
- Shipping Fee Protection: Checkout fees are estimated. If actual shipping costs are lower, we refund you the difference. If higher, we cover the balance.
- Delivery Questions? If your destination address is restricted at checkout, please contact customer support for assistance.
Customer Support
For any inquiries, please contact us at info@en.cntech.com.Inquiries will be addressed within 2 business days.
Warranty
Includes a 1-year limited warranty.
