A320 Simulator Side Stick Box

CNFSimulator.A320 SSB Product Specification (PDF)

Designed specifically for the installation of the A320 side-stick and Tiller.The product can be integrated into IPT/FTD/FNPT professional simulators and is also suitable for Home building simulators for personal learning and experience use.

At present, the sidestick box is compatible with Thrustmaster HOTAS base, no able to use MOZA AB9 base.

Product Overview

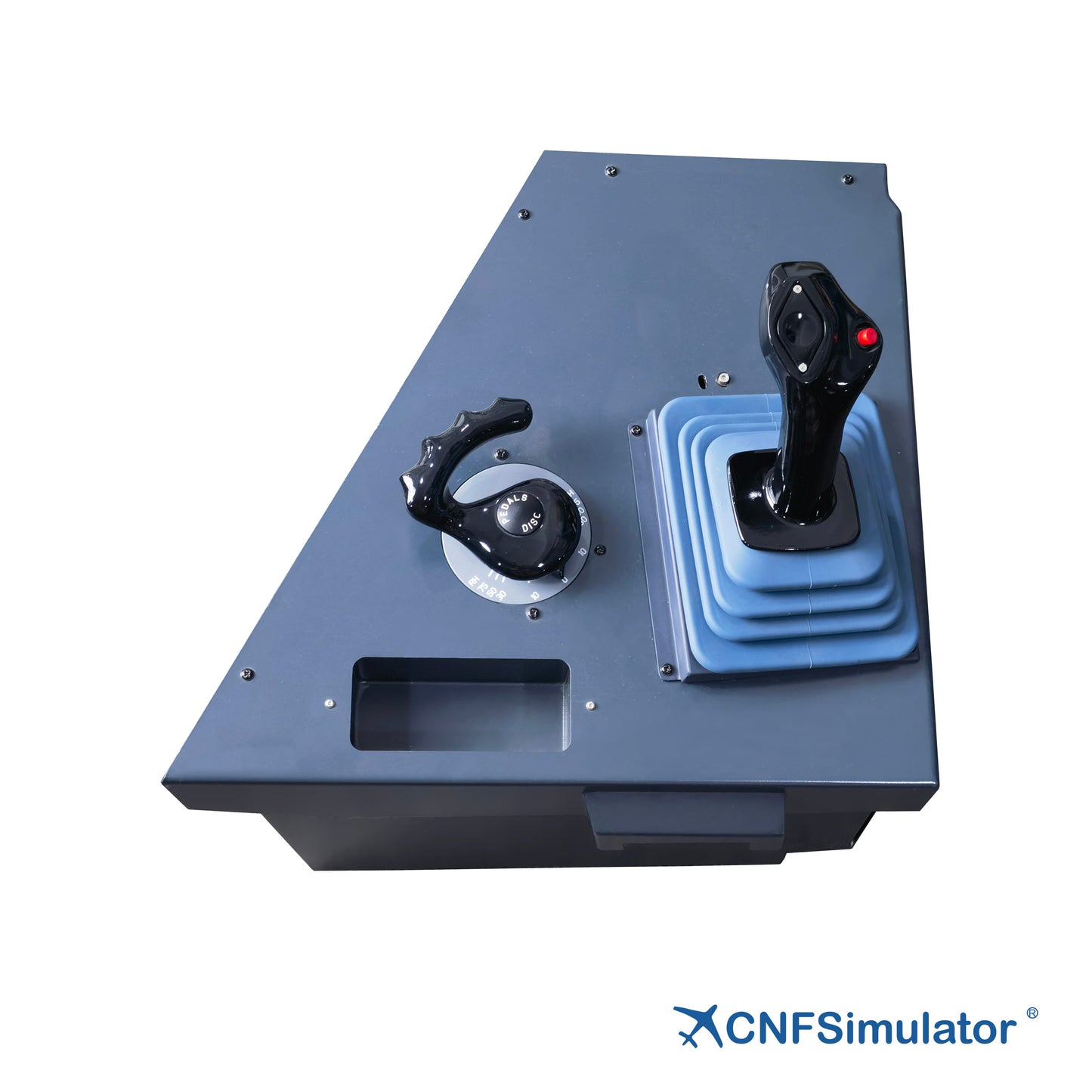

The CnTech A320 Sidestick Box (#A320SSB) is a 1:1 replica of the A320 sidestick pedestal, providing the mounting base for the sidestick and the nose-wheel steering tiller. The enclosure is all-metal, laser-cut and CNC-formed with a professional paint finish; the top plate is inclined at the aircraft angle and carries the sidestick holes, the tiller cut-out and a stowage recess.

The sidestick mounting consists of four M4 threaded holes on a 125 mm pitch with an 80 × 60 mm centre opening; it currently accepts Thrustmaster HOTAS bases and does not accept the MOZA AB9 base. The box can be integrated into IPT, FTD and FNPT training devices, and is equally suited to home cockpit building.

External dimensions are 502 × 459 × 427 mm (L × W × H) and the weight is no more than 20 kg. A floor light is fitted beneath the enclosure, supplied from 24 V DC through a 2-pin plug; a connector panel on the rear side provides USB, LAN and power. Captain (CP) and first officer (FO) versions are available, identical in structure and mirror-imaged.

Product Components

Component	Description
Enclosure Body	All-metal construction, laser-cut and CNC-formed, professionally painted in dark blue-grey
Inclined Top Plate	Inclined at the A320 pedestal angle; carries the sidestick mount, the tiller position and the stowage recess
Sidestick Mount	Four M4 threaded holes on a 125 mm pitch with an 80 × 60 mm centre opening; accepts Thrustmaster HOTAS bases
Tiller Cut-out	Octagonal opening with four mounting holes for the nose-wheel steering tiller, located as on the aircraft
Stowage Recess	Rectangular recess at the front left of the top plate, reproducing the aircraft pedestal recess; holds a logbook and pens
Floor Light	Warm-white light strip under the enclosure, 24 V DC, 2-pin plug marked + / −
Connector Panel	Panel on the rear side with USB, LAN and power connectors for peripherals and light wiring
Recessed Handles	Recessed handles in the side panels for two-person lifting and positioning

Key Features

• 01 True-to-Aircraft Form — The enclosure and inclined deck are modelled from A320 pedestal scan data; the outline, rake and styling follow the aircraft.
• 02 All-Metal Construction — Laser-cut and CNC-formed sheet metal with bolted joints, rigid enough to take repeated sidestick control loads.
• 03 Sidestick Mount — Four M4 threaded holes on a 125 mm pitch with an 80 × 60 mm centre opening, ready for Thrustmaster bases.
• 04 Tiller Cut-out — Octagonal opening and four mounting holes at the aircraft position, so the tiller fits without an adapter plate.
• 05 Floor Light — Warm-white light strip built into the base, 24 V DC with a 2-pin plug marked + / −, lighting the foot area.
• 06 Connector Panel — USB, LAN and power on the rear panel; peripheral and light cables are routed inside the enclosure.
• 07 Left and Right Versions — Captain (CP) and first officer (FO) versions, identical in size and mirror-imaged, for single or paired installation.
• 08 Box Only, Controls Separate — Only the enclosure is supplied; the sidestick, boot and tiller are ordered separately.

Main Features

• Weight：≤20kg
• Size：502 × 459 × 427 mm (L × W × H)
• Metal structure, laser cutting, CNC bending, surface professional coating
• Floor light installed
• Equipped with an interface panel, including USB, LAN, and power connectors

Open in new tab

Light voltage:24V

Open in new tab

Compatibility

Supported Platforms & Aircraft Model
