A320 FMS Trainer

CNFSimulator.A320 FMS Product Specification (PDF)

Product Overview

The CNFSimulator.A320 Flight Management Trainer (#A320FMS) is an integrated training device for A320 flight management and auto-flight training. Built around the first-officer position, it follows real-aircraft operating logic and integrates the flight management, display and control units on one bench.

Modular and flexibly configured, it can be integrated into IPT/FTD/FNPT simulators, and also suits A320 system teaching and individual learning.

Key Features

(1) Modular Design, Complete Configuration
The trainer is modular: FCU, MCDU, TQ, sidestick, pedals and display are independent units, combinable as needed and configured before delivery.

(2) Control Functions the Training Requires
A dedicated general control panel gathers landing gear, flaps and slats, spoilers and parking brake — functions a conventional panel does not cover.

(3) Real-Aircraft Operating Logic and Feel
Controls follow A320 appearance, dimensions and logic; the 32-position FCU encoder, MCDU keypad, throttle detents and pedal damping are tuned to real feel.

(4) Professional Materials and Finish
Panels use professional light-guide material in real-aircraft colours; FCU, MCDU and TQ have backlit legends and status indicators.

(5) Software-Driven, Plug and Play
iFSim.Ready handles device detection, signal testing and backlight control; several MCDUs can work together over a local network.

(6) Professional Integration and Individual Learning
The high-performance configuration integrates into IPT/FTD/FNPT simulators; as a stand-alone set it also suits individual learning.

Training Subjects

(1) Flight Management System Practice
MCDU set-up for cockpit and descent preparation; lateral and vertical functions such as OFFSET, HOLD, ALTN and DIR.

(2) Auto-Flight System Practice
SPD, HDG and ALT knobs with AP and A/THR; EFIS panel; FMA logic and mode transitions.

(3) Instrument and Indication System Practice
PFD and ND interpretation and use of the FD; ILS precision approach and VOR / LOC non-precision approach procedures.

(4) Comprehensive Instrument Flight Procedure Practice
With the FCU and MCDU panels, the quick instructor station and the flaps/slats, landing gear and engine-parameter indication panels, trainees run a complete IF procedure from take-off through approach to landing.

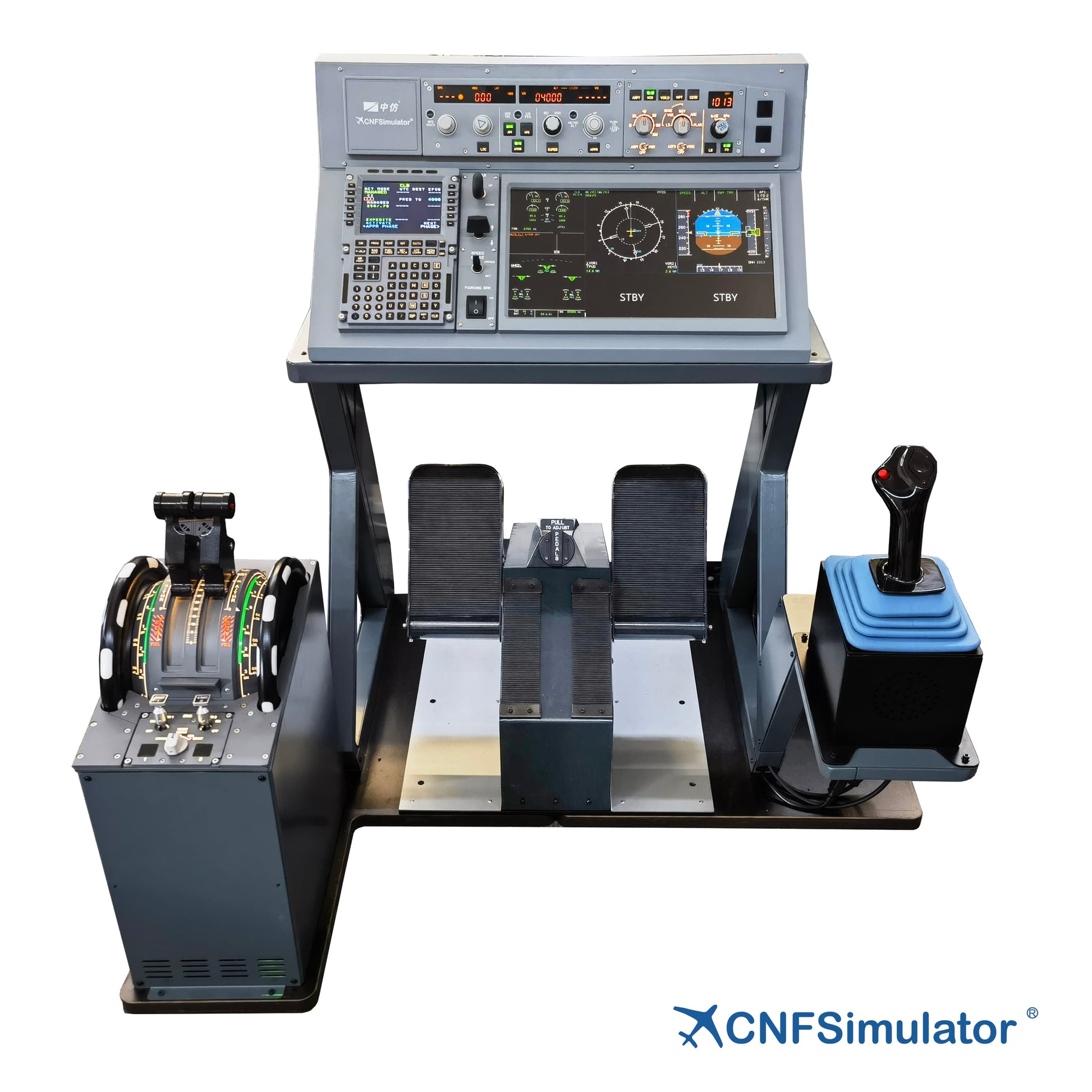

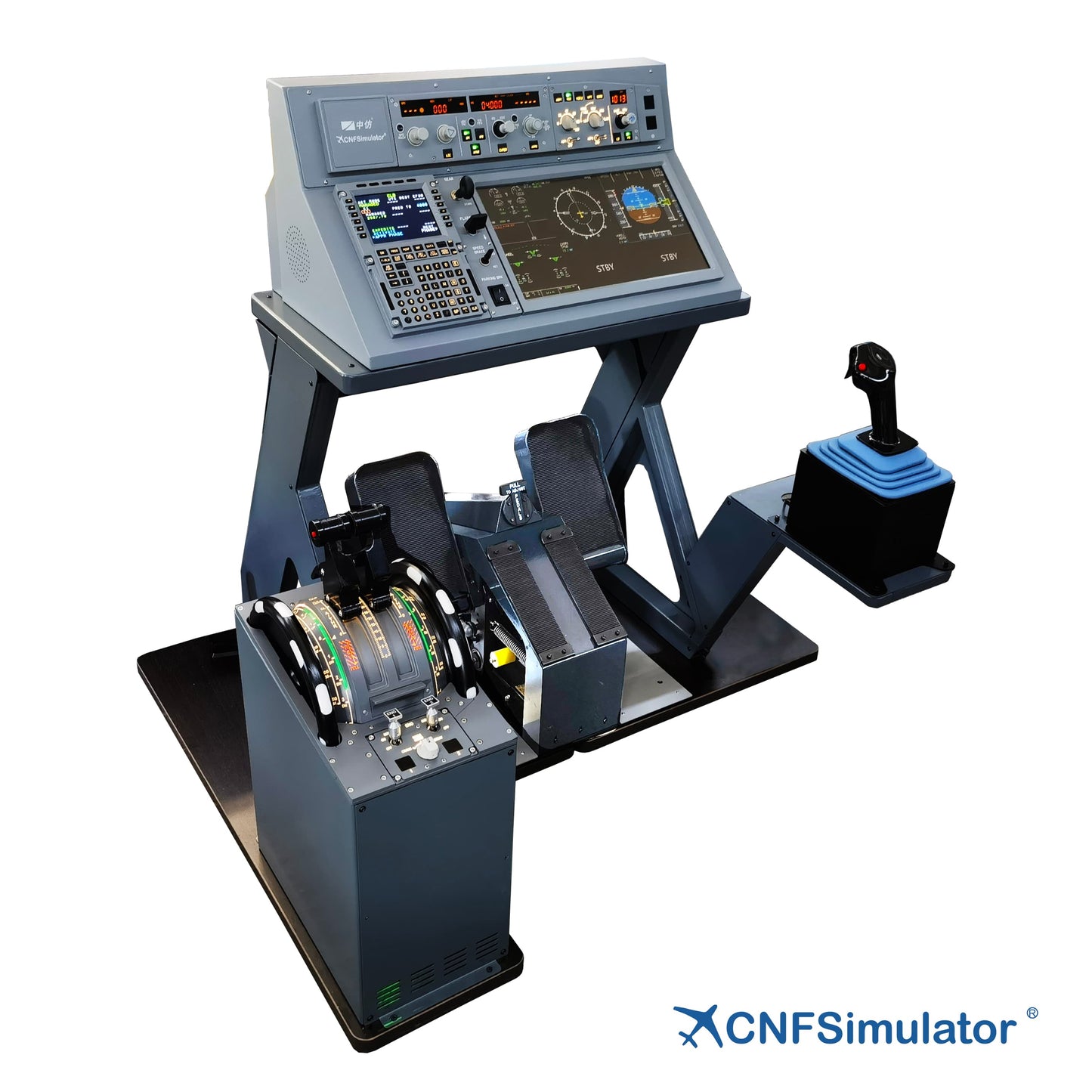

Hardware Composition

No.	Component	Qty.	Description
1	Flight Control Unit (FCU)	1	Auto-flight command entry and display
2	Multipurpose Control and Display Unit (MCDU)	1	Flight plan, performance data and system monitoring
3	General Control Panel (GCP)	1	Landing gear, flaps and slats, spoilers and parking brake
4	Throttle Quadrant (TQ)	1	Thrust control, motorised trim and engine mode selection
5	First-Officer Sidestick	1	Pitch and roll control; sidestick grip replica
6	Rudder Pedals (one side)	1	Rudder and brake control
7	15.6-inch LCD Display	1	Flight instruments and navigation display
8	Visual Display System	1	Airport runway and scene display; supplied by the customer
9	Computer	1	Windows 11; runs the simulation, instrument and instructor software

Component Description

(1) Flight Control Unit (FCU)
Aluminium alloy and PMMA with a professional coating; original heavy-duty 32-position push-pull digital encoders with powder-coated metal knobs; the altitude knob is dual concentric (×100 / ×1000), with backlit legends and indicators.

(2) Multipurpose Control and Display Unit (MCDU)
PMMA with a professional surface coating; positive-action hard keys in the real-aircraft layout with adjustable backlight; FAIL and MSG indicators; the built-in display is 800 × 600, and mounting screws are M4 with DZUS-style heads.

(3) General Control Panel (GCP)
PMMA with a professional coating; two-position toggles simulate the gear lever, three-position self-centring switches simulate flaps/slats and spoilers, two-position rockers simulate the parking brake; metal handles give a positive feel.

(4) Throttle Quadrant (TQ)
Aluminium frame, rigid enough to withstand transport shock; levers use an anti-static coating; motorised trim wheels are direct-driven without a gearbox; software-driven backlighting, engine mode switches, fire and fault annunciators and metal detents.

(5) First-Officer Sidestick
The grip is 3D printed from scan data of the real part; a five-spring system gives smooth, linear force with no dead zone; PTT and AP-disconnect buttons are fitted, and a 16-bit three-axis Hall sensor gives precise control.

(6) Rudder Pedals (one side)
Steel structure with a professional surface coating; pedal faces and pads are rubber covered; carbon-fibre dampers with adjustable damping bring rudder feel closer to the real aircraft; the unit stands directly on the floor with no under-floor mechanism.

Software and Simulation

The product builds FMS functionality on mainstream simulation platforms and aircraft models — iFSim A320, ProSim A320, ToLiss A320, Fenix A320 and Jeehell A320 — with performance, systems and fly-by-wire models integrated.

(1) Quick Instructor Station
From one interface the instructor sets the departure airport, take-off runway and other items and puts the aircraft into the ready-to-train state; the flaps/slats, landing gear and engine-parameter panels keep the configuration visible.

(2) Visual System
Based on X-Plane and compatible with P3D, it covers runway, taxiways and surrounding scenery for approach and landing.

Item	Software
Visual Software	X-Plane, Prepar3D, Microsoft Flight Simulator
Aircraft Models	iFSim A320, ProSim A320, ToLiss A320, Fenix A320, Jeehell A320
Instructor Station	Quick instructor station; sets departure airport, take-off runway, time and weather
Data Acquisition	iFSim.Ready (device detection, signal test, backlight control)

A320 FMS Trainer Specifications

High-performance products that meet professional needs can be integrated into IPT/FTD/FNPT professional simulators, and are also suitable for individual learning and experience.

Main Features:
• Power Supply：220 V / 10 A
• Weight：≤95kg
• Size：980(L) x 1120(W) x1040(H)mm
• Modular design, complete configuration, flexible matching, easy to use
• Exquisite universal control switch panel, supplementing the control functions required for training
• iFSimReady Software required
• Supported Platforms & Aircraft Model

Hardware Components:
1 x FCU
1 x MCDU
1 x GCP
1 x TQ
1 x Side Stick（FO）
1 x Rudder Pedal
1 x 15.6 inch LCD screen（1920×1080）

A320 FCU
• Made out of Aluminum Alloy and PMMA with Professional Surface Coating
• Original heavy duty Push/Pull digital encoders
• Aluminum, powder-coated Knobs, with symbols
• Dual concentric ALT Knob (external knob for x100 / x1000 scale)
• Real indicator lights and backlight effects，including backlit captions，active status LEDs，backlit frontplate

A320 MCDU
• Made out of PMMA with Professional Surface Coating
• Tactile hard touch keyboard with exact layout，Integrated Adjustable back light
• Complete indicator lights, including all indicator light boards such as FAIL and MSG
• Color LCD/TFT monitor with resolution 800 × 600 and adjustable brightness
• Supports multiple units in the same LAN
• M4 Fixing Screws Included with DZUS Fasteners

GCP
• Made out of PMMA with Professional Surface Coating
• Two speed toggle switchs simulate the control function of the landing gear handle
• Three speed double-sided reset toggle switchs simulate the operation of retracting Flaps and Speed Brake
• Two speed rocker switchs simulate Parking switch function
• Aluminum, powder-coated Knobs, good hand feel and reliable quality

A320 TQ
• Aluminum alloy frame structure, sturdy and durable, resistant to impacts such as transportation jolts
• Aluminum alloy manufactured handle, with a special anti-static coating on the surface, safe and comfortable
• Electric trim wheel, driven by high-performance DD motor, without mechanical gearbox, high reliability
• Stainless steel gear transmission, reliable and durable
• Software driven Backlight
• Aluminum alloy manufactured engine ignition switch, status selection switch
• Fire and Fault annunciators
• Metal pawl mark and impact indicator, appearance painted

A320 Side Stick (FO)
• Handle is manufactured using 3D printing technology based on the scanned data of the real parts
• 5-spring system, with a smooth, linear, and dead-zone-free control force sensation
• Button for PTT
• 8N pressure A/P Disengage button
• 3D Hall magnetic sensor technology, 16-bit resolution，precise control, maintenance-free
• High Quality Rubber Bellow，true-to-life replicas of die-cast manufacturing

A320 Rudder Pedals(Single)
• Manufactured from steel materials, with a professional surface coating
• Rubber covered footrest and Pedals
• Carbon fiber damper, adjustable damping force, better rudder operation force sensation
• Direct floor mounting，No underground mechanics required，Convenient to use

Compatibility

Supported Platforms & Aircraft Model
