Diamond DA40/DA42 level 5 FTD flight simulator

Diamond DA40/DA42 level 5 FTD flight simulator

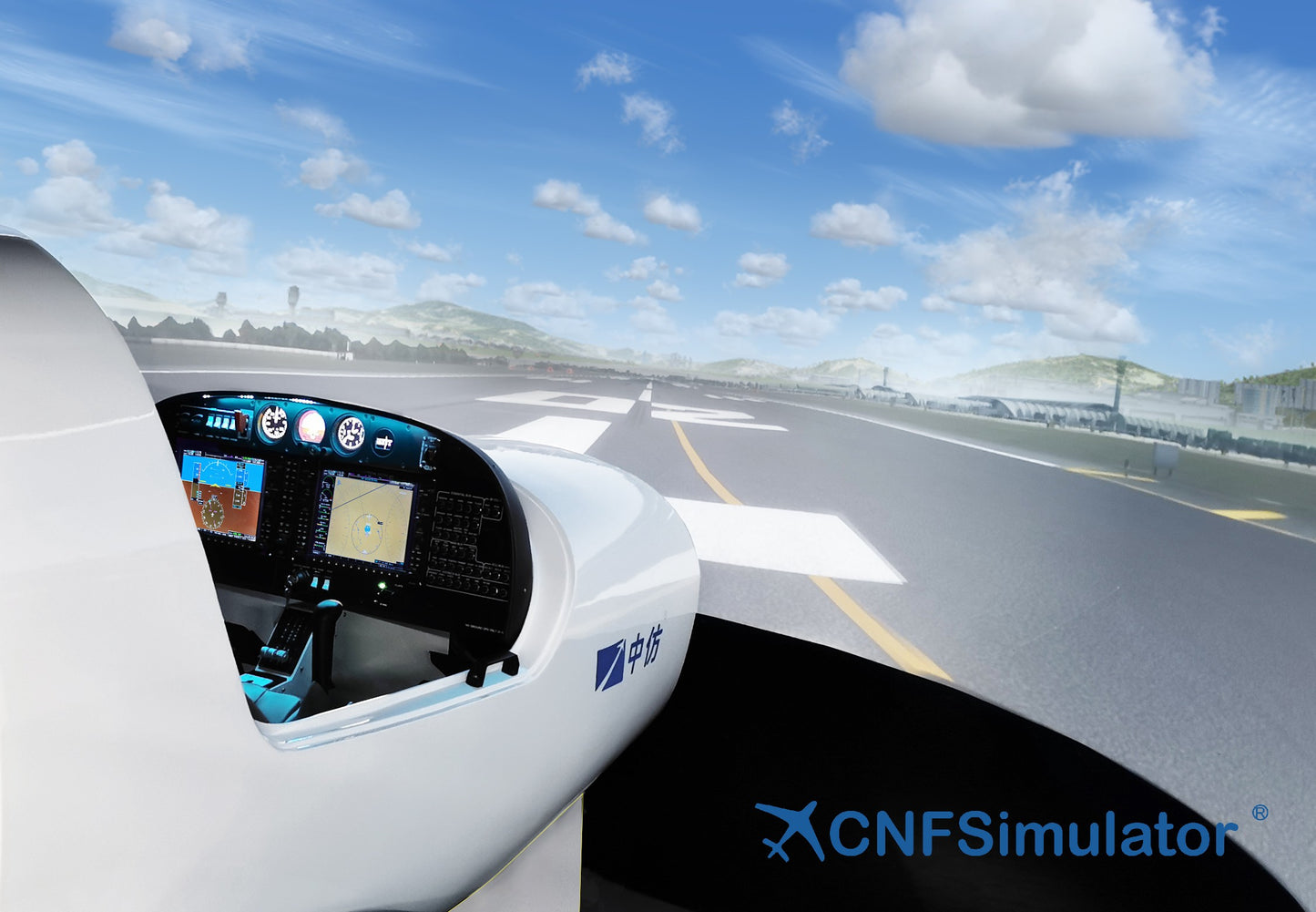

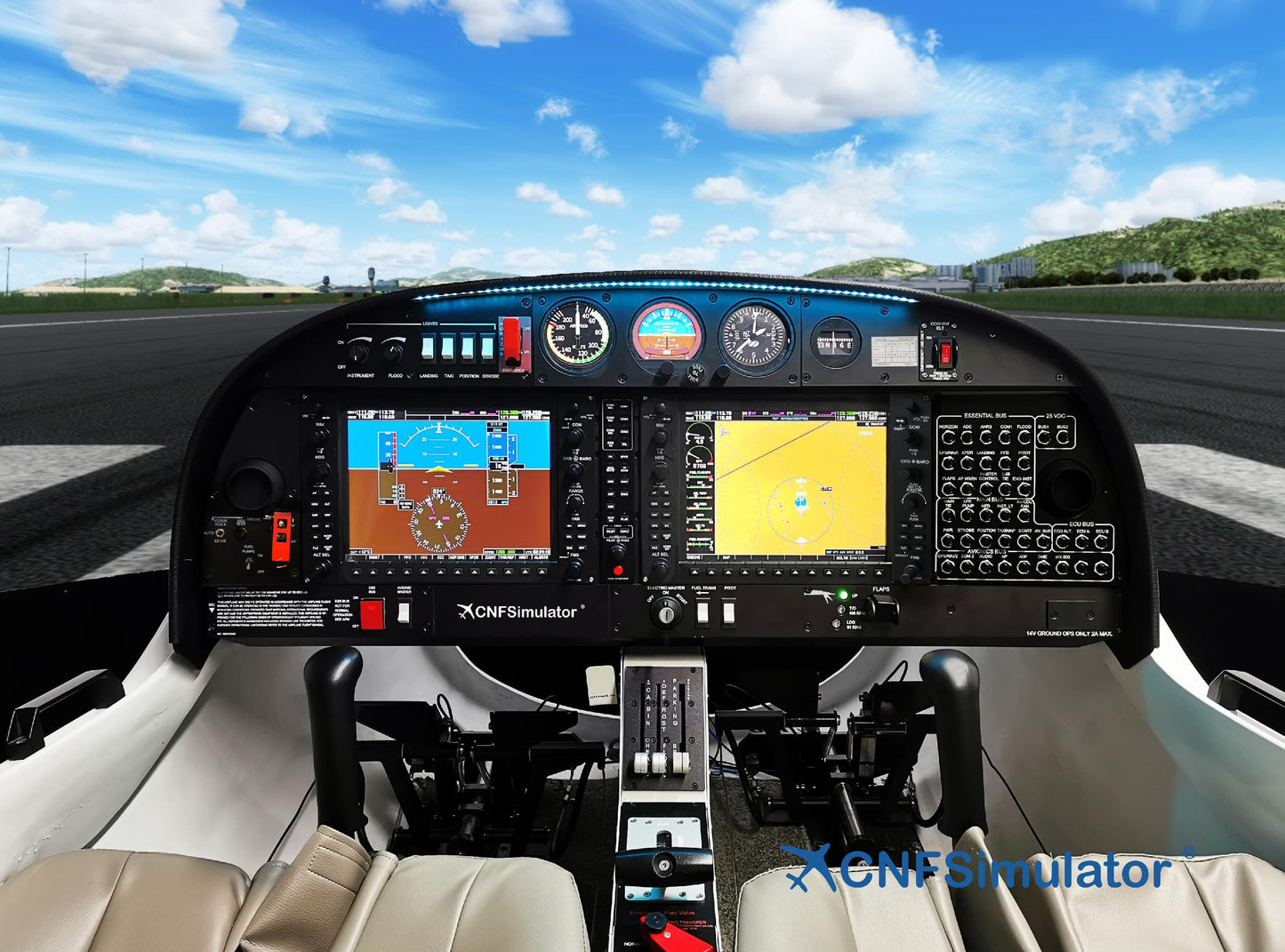

In order to implement the new policy of pilot life Cycle Management System (PLM) and the new system of Evidence-based training (EBT) proposed by the Civil Aviation Administration for pilot training, CnTech has launched a variety of solutions including CNFSimulator according to the 141 training guidelines proposed by the Civil Aviation Administration. The CNFSimulator.FTD.DA40/DA42 trainer is developed according to two models of Diamond DA40 and Diamond DA42, can meets CAAC FTD Level 5 standard. They can simulate the flight subjects required by the training syllabus on the trainer, failures, and accumulate flight experience. Customers can optimize fleet resources, reduce airspace congestion and accelerate student formation. The dual switching function of the DA40/DA42 trainer can help customers reduce the cost of training equipment and optimize training time resources.

CNFSimulator.FTD.DA40/DA42 has been put into use at Civil Aviation Flight University of China, Qingdao Jiutian International Flight College and Hubei Hongxiang Aviation School.

Product Applications

Aviation theory training

  • Flight simulation data package that meets FAA/CAAC certification standards, reflecting the performance and control characteristics of the aircraft
  • An atmospheric model that complies with ICAO standards, reflecting the changes in the atmospheric environment and its impact on flight and instrument indications
  • Navigation principles teaching, with GPS, VOR, ILS, and NDB navigation modes

Instrument landing program training

  • ILS
  • VOR, LOC
  • Scene settings required for low visibility operation

SOP Training

  • Training of takeoff and landing routes
  • Airspace Flight Training
  • Transition Flight Training

Failures and abnormal operating procedures

  • The phenomenon and disposal of circuit breaker popping out
  • Troubleshooting of engine, power supply, and full static pressure system faults
  • The use of backup instruments when part of instruments failures
  • IOS setting failures and circuit breaker popping

Aircraft and Avionics Systems Teaching

  • Power and fuel system models established based on real aircraft schematics

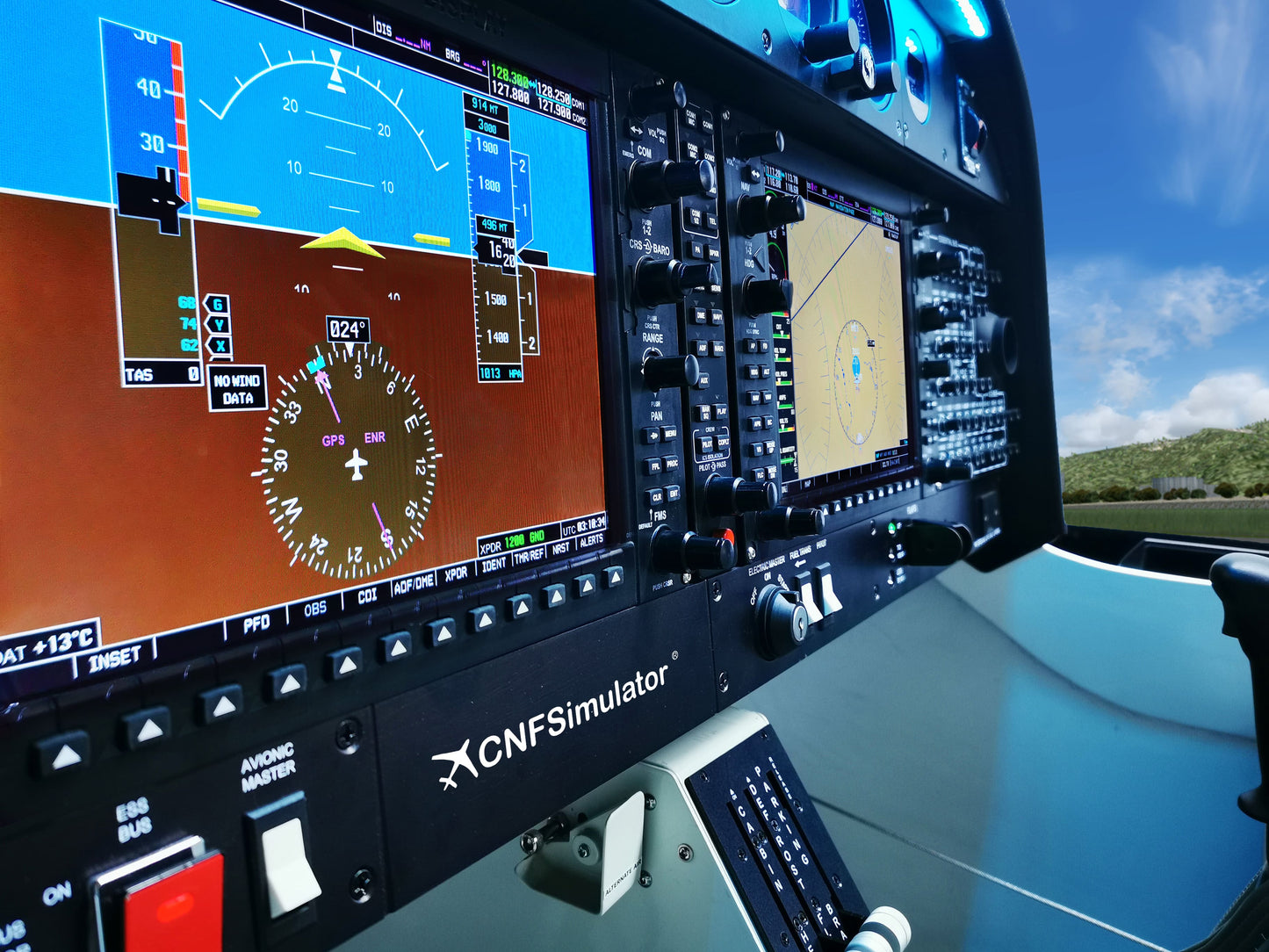

  • G1000 integrated avionics system usage, including PFD, MFD, audio control board
  • Editing, executing, and modifying of flight plans

Standard Configuration

Please click here to download Product Brochure

Function Upgrade Options

QTG Test function

  • QTG test software to certification specification
  • Provide on-site support for certification
  • Trainer relocation certification service

Customized airport and navigation data

  • Building a 3D model of a particular airport
  • Aligning navigation data from charts
  • Meet general aviation training needs

If you need to know more about these options, Please contact us for quotation.

View full details

FTD5 Certification

CnTech DA40/DA42 FTD 5 has obtained CAAC FTD Level 5 certification, which is a almost same system with FAA FTD5. What is CAAC FTD? CnTech's Level 5 FTD can cooperate with customers from any country to obtain Level 5 certification from the local Aviation Administration. Please feel free to contact us.
